Dialogue Data

The main data for this project was found on Kaggle, and consisted of individual *.csv files for the lines in each episode.

library(tidyverse)
library(textdata)
library(tidytext)
library(stringr)
library(plotly)
library(rvest)

episode1 <- read_csv('scripts/s1e01.csv')

head(episode1) %>% kable()

Thankfully, the naming of the 122 *.csv files was straightforward, for example s1e01.csv. This made it simple to loop through the folder of data files to build one data frame.

seasons = 1:7
episodes = c(6,24, 16, 22,22,20,12)
all_eps = data.frame()
overall_ep = 0

for(sn in seasons){
  for(ep in 1:episodes[sn]){
    eps = paste(ep)
    if(ep < 10) eps = paste('0', ep, sep = '')
    df <- read_csv(paste('scripts/s', sn, 'e', eps, '.csv', sep = ''))
    overall_ep = overall_ep + 1
    all_eps = rbind(all_eps, cbind(df, 'Season' = sn, 'Episode' = ep, 'Overall_Episode' = overall_ep))
  }
}

At this point, we have a data frame like the one above, but for all episodes. This data frame also contains Season, Episode, and Overall_Episode. Here’s a look at the start of Season 3.

all_eps %>% filter(Season == 2) %>% head() %>% kable()

After this step, I had to make some manual adjustments to the data. In Season 6, the season opener and the season finale were both two part episodes. In the data sets, they are treated as single episodes, but we want to consider them split apart. This would keep episode length generally standardized and make it match the representation on IMDB. To do this, I found the lines that showed the episode breaks and then manually adjusted the episode number numbers for the following episodes.

s6e1break = 48735
s6e21break = 58963
s7break = 59365
end_line = 65942

all_eps[s6e1break:end_line,5] = all_eps[s6e1break:end_line,5] + 1 #change overall episode numbers
all_eps[s6e21break:end_line, 5] = all_eps[s6e21break:end_line, 5] + 1

all_eps[s6e1break:s7break,4] = all_eps[s6e1break:s7break,4] + 1 #change episode numbers in season 6
all_eps[s6e21break:s7break,4] = all_eps[s6e21break:s7break,4] + 1

episodes = c(6,24, 16, 22,22,22,12)

all_eps %>% group_by(Season) %>% summarise(num_episodes = n_distinct(Episode)) %>% kable()
## `summarise()` ungrouping output (override with `.groups` argument)

The next step was to break apart the lines into the individual words, remove punctuation and convert the data frame to a more “tidy” format. This was done using tidytext::unnest_tokens().

all_eps_tidy <- all_eps %>%
  group_by(Season, Episode) %>%
  mutate(line_num = row_number()) %>%
  ungroup() %>%
  unnest_tokens(word, Line)

At this point, we have two data frames: all_eps and all_eps_tidy. The data frame all_eps will have more to do with the number of lines each character has, while all_eps_tidy will be more useful for determining sentiment.

IMDB Data

Shifting gears slightly, I also wanted to incorporate some data from IMDB to go alongside the dialogue data and sentiment scoring. The most straightforward way of doing this was to scrape the IMDB website to pull out episode ratings, titles, and descriptions. On the IMDB website, the Parks and Recreation has a page that shows these three pieces of information for all episodes of a given season. Moreover, the season selection is simple to do by adjusting the url. These pieces of organization reduced the challenges of this task considerably.

After some experimentation, I was able to isolate the tags within the web page that contained the desired information. My understanding of web development terms and technologies is very shaky, so my terminology might be somewhat off. Lets have a look at what happens when we pull information for Season 1, Episode 1.

page = read_html('https://www.imdb.com/title/tt1266020/episodes?season=1')
text = html_text(html_nodes(page, '.info'))
text[1]
## [1] "\n    \n            9 Apr. 2009\n    \n    Pilot\n    \n    \n        \n            \n        7.0\n            (2,786)\n    \n    \n        \n    \n        \n            \n        0\n    \n    \n        \n            \n        Rate\n    \n        \n    \n        \n            \n                            \n            \n            \n            \n                    \n    \n        \n            \n        1\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        2\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        3\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        4\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        5\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        6\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        7\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        8\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        9\n    \n    \n        \n            \n        Rate\n    \n                    \n                    \n    \n        \n            \n        10\n    \n    \n        \n            \n        Rate\n    \n                    \n                \n                    \n            \n            0\n        \n        \n            Error: please try again.\n        \n    \n        \n            \n    \n    \n    \n    In an attempt to beautify her town, Leslie Knope takes on the seemingly simple job of helping turn an abandoned construction pit into a park.    \n    \n  "

Certainly looks like a disaster, but all the info we are looking for is in that data. If we trim the new lines and double spaces, it is much easier to read.

text <- gsub('\n', '', text)
text <- gsub('  ', '', text)
text[1]
## [1] "9 Apr. 2009Pilot7.0(2,786)0Rate1Rate2Rate3Rate4Rate5Rate6Rate7Rate8Rate9Rate10Rate0Error: please try again.In an attempt to beautify her town, Leslie Knope takes on the seemingly simple job of helping turn an abandoned construction pit into a park."

Now, we can pick up on patterns and pull out information we want. The easiest is the description: for each episode the description follows the piece of text that says 'please try again. '. The title and score are followed by an open parenthesis (, with the score occupying the last three characters of that section. Finally, the episode title follows the year of release, which takes the form 20XX. Here’s what this looks like for the first episode.

descriptions <- word(text, 2, sep = fixed('please try again.'))
ttl <- word(text, 1, sep = fixed('('))
scores <- as.numeric(str_sub(ttl, -3,-1))
titles <- word(ttl, 2, sep = '20\\d\\d') %>% str_sub(1,-4)
titles[1]
## [1] "Pilot"
scores[1]
## [1] 7
descriptions[1]
## [1] "In an attempt to beautify her town, Leslie Knope takes on the seemingly simple job of helping turn an abandoned construction pit into a park."

Thankfully, each of those patterns remain consistent for each episode of each season, so these lines of code can be used to loop through the entire series of the show.

imdb_df = data.frame()

for(sn in seasons){
  page <- read_html(paste('https://www.imdb.com/title/tt1266020/episodes?season=', sn, sep = ''))
  nodes = html_nodes(page, '.info')
  text = html_text(nodes)
  text <- gsub('\n', '', text)
  text <- gsub('  ', '', text)
  descriptions <- word(text, 2, sep = fixed('please try again.'))
  ttl <- word(text, 1, sep = fixed('('))
  scores <- as.numeric(str_sub(ttl, -3,-1))
  titles <- word(ttl, 2, sep = '20\\d\\d') %>% str_sub(1,-4)
  df <- data.frame('Season' = rep(sn, episodes[sn]), 'Episode' = 1:episodes[sn], 'Title' = titles, 'imdb_score' = scores, 'description' = descriptions)
  imdb_df = rbind(imdb_df, df)
}
head(imdb_df) %>% kable()

Finally, we can join the IMDB data with the dialogue data to create our final data set. In this step, we also pull in the Bing Lexicon for sentiment analysis, to gauge the overall sentiment of each episode.

episode_data <- all_eps_tidy %>%
  inner_join(get_sentiments('bing')) %>%
  count(Season, Episode, Overall_Episode, sentiment) %>%
  pivot_wider(names_from = sentiment, values_from = n) %>%
  mutate(sentiment = positive - negative)  %>%
  inner_join(imdb_df, by = c('Season', 'Episode'))
## Joining, by = "word"

When I looked through the data frame, I noticed one small bug from the next-to-last section of code: season 7, episode 1 was missing its title. The score and description were there, but the title was a blank string. When I looked up the title of that episode, I found that it was 2017. This meant that the code meant to trim away the episode release date had trimmed away the title as well. Since it was only a problem for one data point, I just corrected it manually.

episode_data$Title[113] = '2017' #This got lost in the string value trimming due to confusion with date

Who had the most lines?

Those who watched the show would not need a graph to answer this one. It’s Leslie Knope. Nonetheless, I wanted to see how the breakdown of the show’s top speakers changed from season to season. For each of the graphs made, I wrapped them in functions with parameters to use for filtering (this was mostly to make things easier when calling them in the Shiny server).

line_share_lollipop <- function(season){
  all_eps %>%
    filter(Season == season) %>%
    group_by(Character) %>%
    summarise(line_count = n()) %>%
    ungroup() %>%
    mutate(lineshare = line_count / sum(line_count)) %>%
    arrange(desc(lineshare)) %>%
    mutate(Character = factor(Character, levels = Character[order(lineshare)])) %>%
    head(15) %>%
    ggplot(aes(x = Character, y = lineshare)) +
    geom_segment(aes(x = Character, xend = Character, y = 0, yend = lineshare), color ="#264653") +
    geom_point(color = "#264653", size = 3, alpha = .6)+
    scale_y_continuous(labels = scales::percent)+
    coord_flip() +
    labs(
      title = paste('Percentage of Total Lines: Season', season),
         x = '',
         y = '') + theme_minimal()
  #ggplotly()
}

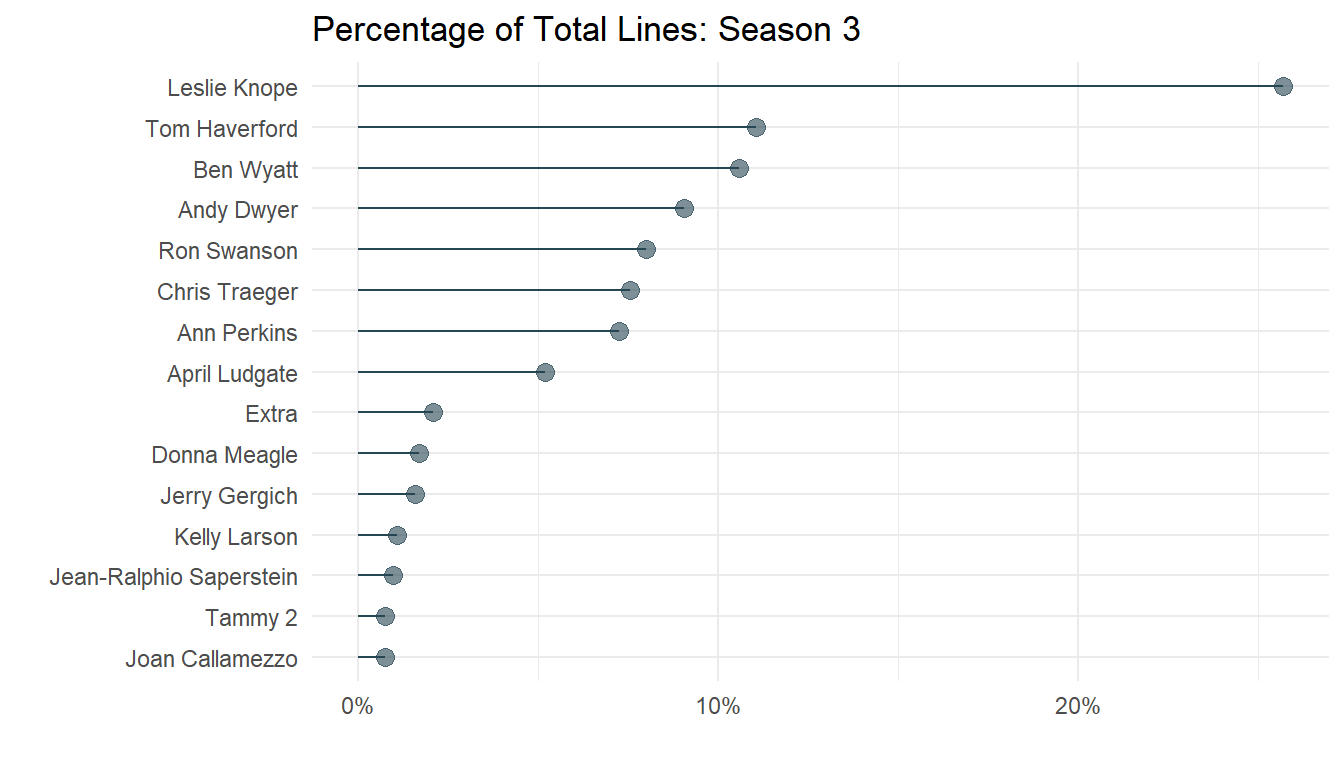

line_share_lollipop(3)
## `summarise()` ungrouping output (override with `.groups` argument)

So, in season 3, Leslie Knope had a whopping 25% of the lines spoken in the show, over twice the amount of the next-highest character.

Sentiment: Full Series Run

Next, I simply visualized the overall sentiment (calculated using the Bing Lexicon) of each episode over the entire run of the series. There were some interesting trends:

full_series_bar <- function(){
  episode_data %>%
    mutate(Season = as.factor(Season)) %>%
    ggplot(aes(fill = Season, label = Episode, x = Overall_Episode,  text = Title, y = sentiment )) +
    geom_col(show.legend = F) +
    labs(title = 'Overall Sentiment per Episode of Parks and Recreation',
         x = 'Episode Number',
         y = 'Overall Sentiment')+
    theme_minimal()
  ggplotly(tooltip = c('text', 'fill', 'label', 'y'))
}
full_series_bar()

Looking at this graph, I found it interesting how almost every season showed similar patterns in regards to the sentiment. Each of them started out relatively high in the first or second episode of the season. Then a few episodes in, there tended to be steep declines, as the overarching challenges of the season presented themselves. Then sentiment tended to surge in the middle of the season, followed by a second decline late in the season, before picking up as each season comes to a close. Although it doesn’t fit perfectly for every season, it is interesting to see patterns in the storytelling.

Season IMDB Scores

Next, I wanted to use color to represent trends within a season. This would give another representation to the graph shown above. In this graph, the user can select whether to visualize sentiment of the episodes or IMDB score.

g <- episode_data %>%
    filter(Season == 3) %>%
    ggplot(aes(label = Title, x = Episode, y =1 ,fill = imdb_score,  text = description))+
    geom_col(show.legend = F) +
    scale_fill_distiller(palette = 'RdYlGn', direction = 0)+
    labs(title = '', x = '', y = '') +
  theme_minimal()

ggplotly(g,tooltip = c( 'label','x',  'fill'))

Character Sentiment

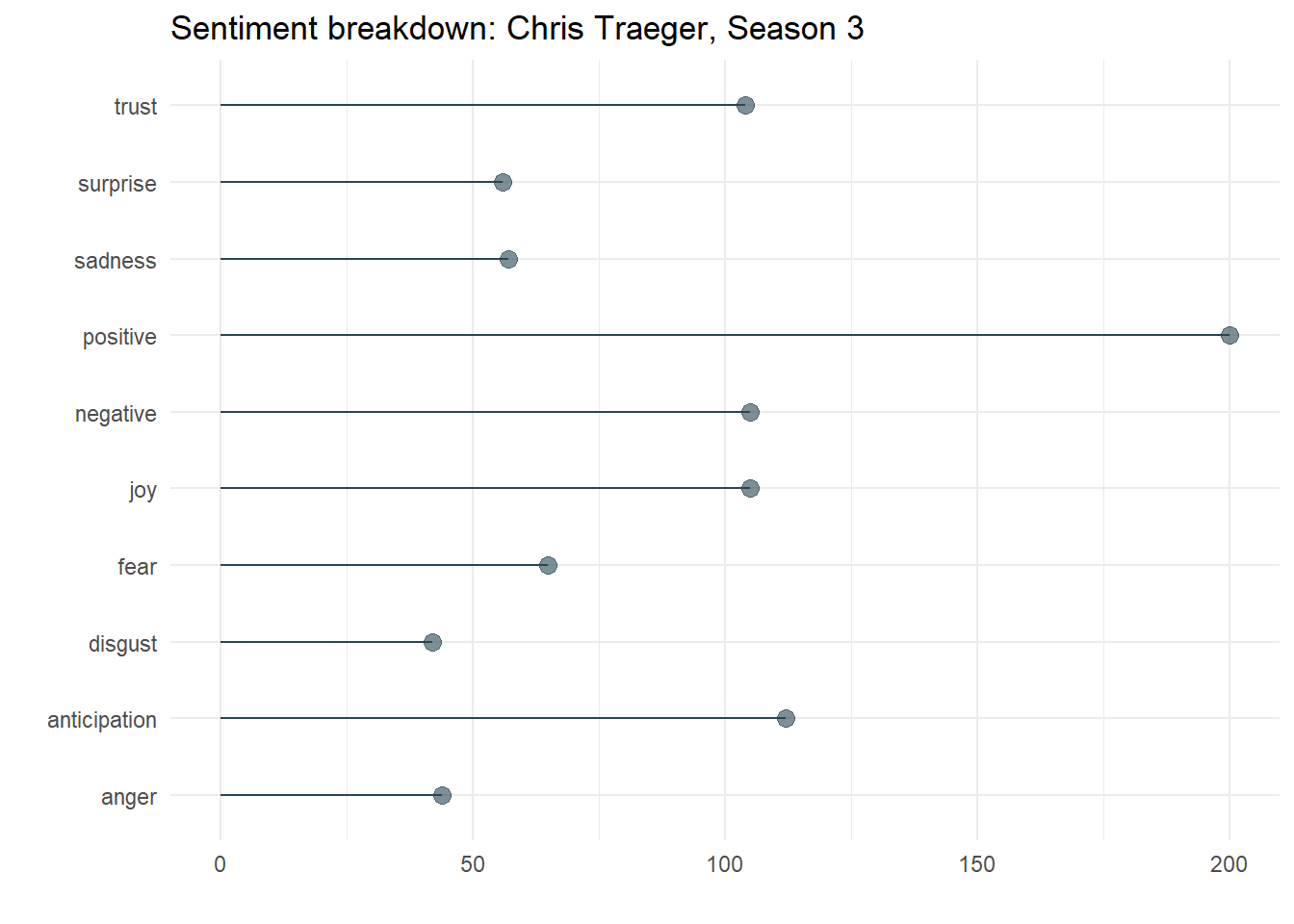

For the final graph, I used a similar “lollipop” graph to represent each character’s expression of various emotions for a given season. This measurement of emotion comes from the NRC Lexicon. Here are Chris Traeger’s emotions from Season 3:

all_eps_tidy %>%
    filter(Season == 3,
           Character == 'Chris Traeger') %>%
    inner_join(get_sentiments('nrc')) %>%
    count(sentiment) %>%
    ggplot(aes(x = sentiment, y = n)) +
    geom_segment(aes(x = sentiment, xend = sentiment, y = 0, yend = n), color = "#264653") +
    geom_point(color = "#264653", size = 3, alpha = .6)+
    scale_y_continuous()+
    coord_flip() +
    labs(title =  'Sentiment breakdown: Chris Traeger, Season 3',
         x = '',
         y = '') +
    theme_minimal()
## Joining, by = "word"

This is an area I might flesh out and adjust if I were to continue working on this app. I found that the distributions did not vary dramatically from character to character or from season to season. To correct for that, I might consider some kind of normalization for these values, so that one’s expression of a given emotion is displayed relative to her peers. This would better highlight differences between characters rather than similarities based on the overall tone of the show. I might also consider using higher order n-grams to measure sentiment, rather than sticking to simple unigrams.

Bootstrap Lib

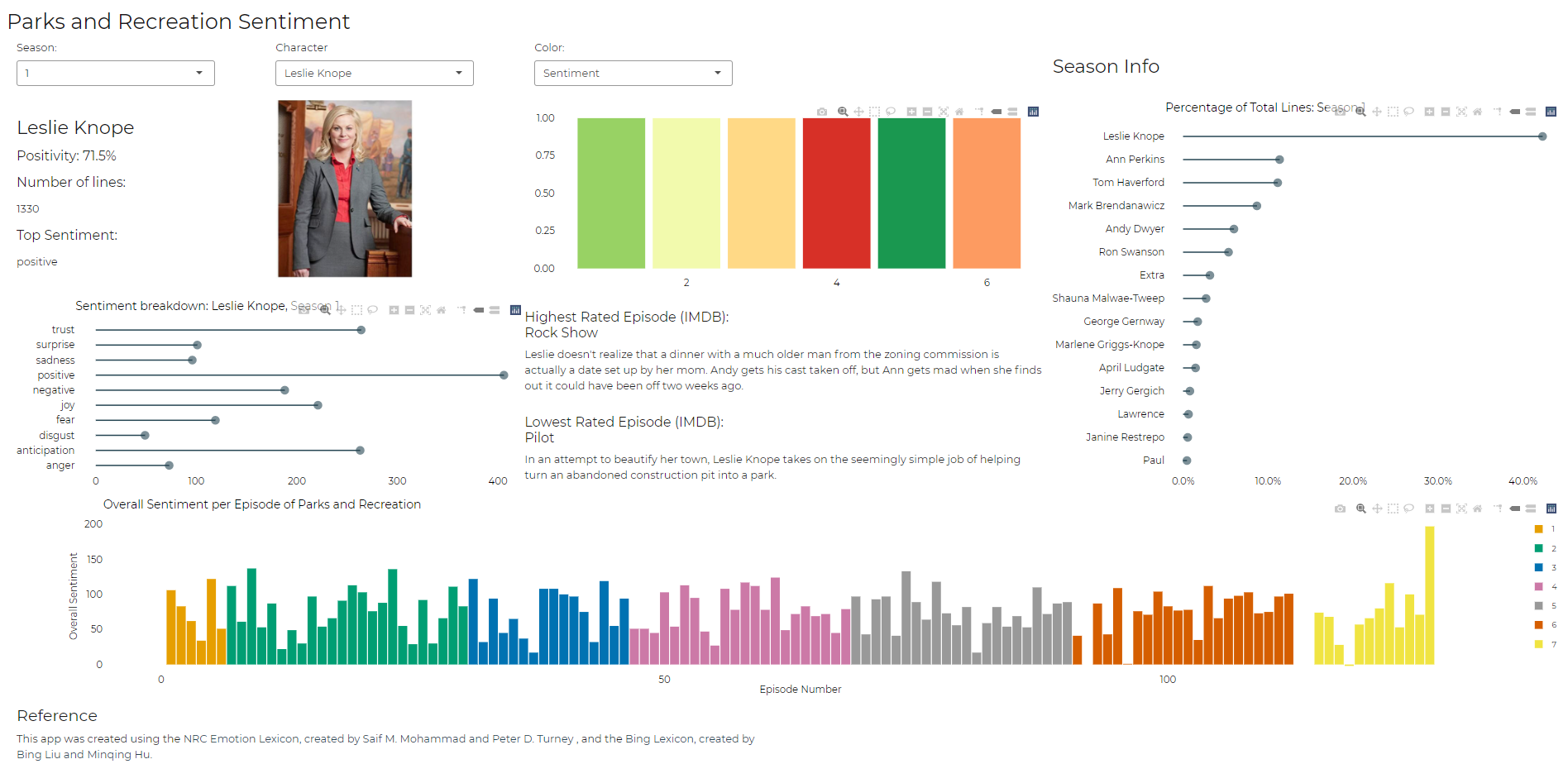

The library bslib, found here on CRAN took care of almost all of the styling. This package implements custom Bootstrap themes for Shiny apps, and includes a preview/demo app to test out different fonts and color schemes. Thanks to this package, the custom styling took only a couple of lines of code.

Thematic

The thematic library, also found on CRAN, covers some of the styling “gaps” left by bslib. For example, bslib is not useful for styling base R and ggplot graphs, as those are rendered as image files. Further, bslib also has limited effectiveness (for now) with styling plotly widgets. Thematic took care of those issues, applying custom styling to plots as they are generated. This can be used to create graphics that fit with the other theming elements in the Shiny app. An added bonus of thematic is that running thematic_on() during an R session adjusts the plots you create to match your RStudio editor theme. Perfect for maintaining the right aesthetic while doing EDA.
